Residential > GC / GCX Series

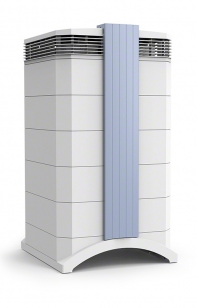

IQAir GC Series (NE)
The IQAir GC Series offers professional control of gaseous contaminants and odors. Each system contains four filter cartridges with cylindrical shape and large surface area for ensuring superior gas removal efficiencies while also maintaining a high air delivery rate. Besides, the system consists of a HEPA pre-filter to remove particulates before reaching the gaseous filtration process, which increases the efficiency and the life of the gas phase filter.
Swiss Made
Catalogue1. Customized for a variety of gaseous and chemical substances and particulate contaminant control
2. 3-stage filtration system, with a unique cartridge system allows for superior gas and odour control
3. Four customized and advanced models for your specific gas and odour removal needs
4. Individually tested and certified for guaranteed filtration efficiency of ≧ 99% for particles with size ≧ 0.3 micron, and supplied with a hand-signed Certificate of Performance
2. 3-stage filtration system, with a unique cartridge system allows for superior gas and odour control
3. Four customized and advanced models for your specific gas and odour removal needs
4. Individually tested and certified for guaranteed filtration efficiency of ≧ 99% for particles with size ≧ 0.3 micron, and supplied with a hand-signed Certificate of Performance
| Air delivery per fan speed (incl. filters) | 1: 40 2: 90 3: 150 4: 220 5: 280 6: 400 m3/h |
| Weight (incl. filters) (approx.) | MultiGas: 20 kg VOC: 19 kg ChemiSorber: 22 kg AM: 20 kg |
| Power requirements | 220-240 V / 50-60 Hz |
| Energy consumption | ca. 20-135 W |
| Dimensions (H x W x D) | 71 x 38 x 41 cm |
| Fan motor | centrifugal, backward curved, with thermal protector, non-stop use approved |
| Colour of main housing / locking arms | light grey / light blue |
| Housing material | non-offgasing, impact-resistant, UV-stabilized ABS |
- Autopsy labs & mortuaries
- Dissecting rooms
- Hair & nail and beauty salons
- Laser surgery
- Areas with solvent contamination
- Photo-processing labs
- Rooms with elevated concentrations of cigar smoke
- Incontinence wards
- Veterinary environments
- Dissecting rooms
- Hair & nail and beauty salons
- Laser surgery
- Areas with solvent contamination
- Photo-processing labs
- Rooms with elevated concentrations of cigar smoke
- Incontinence wards
- Veterinary environments
F1 - Pre-filter (GC HEPA Pre-Filter H11 (S))
- Purpose: control of coarse, fine & ultra-fine dust particles; protection of subsequent filters
- Efficiency: ≧ 99% at ≧ 0.3 μm (class H11)
F2 - Gas & odour filter (GC Filter Cartridge Set)
- Purpose: control of a wide range or specific chemical substances and odours
- Media options:
> MultiGas: granular activated carbon & impregnated alumina
> VOC: granular activated carbon
> ChemiSorber: granular impregnated alumina
> AM: granular impregnated activated carbon
F3 - Post-filter (GC Post-Filter Sleeve Set)
- Purpose: control of fine & ultra-fine particulate matter
- Purpose: control of coarse, fine & ultra-fine dust particles; protection of subsequent filters
- Efficiency: ≧ 99% at ≧ 0.3 μm (class H11)
F2 - Gas & odour filter (GC Filter Cartridge Set)
- Purpose: control of a wide range or specific chemical substances and odours
- Media options:
> MultiGas: granular activated carbon & impregnated alumina
> VOC: granular activated carbon
> ChemiSorber: granular impregnated alumina
> AM: granular impregnated activated carbon
F3 - Post-filter (GC Post-Filter Sleeve Set)
- Purpose: control of fine & ultra-fine particulate matter
Advanced controls
- 4 languages selection
- 6 selectable fan speeds settings
- Intelligent filter life monitor and filter replacement LEDs
- Advanced timer to allow programming of operating hours and weekdays
- Supplied with remote control & power cord with plug
- Supplied with casters for easy mobility
- 4 languages selection
- 6 selectable fan speeds settings
- Intelligent filter life monitor and filter replacement LEDs
- Advanced timer to allow programming of operating hours and weekdays
- Supplied with remote control & power cord with plug
- Supplied with casters for easy mobility
Replacement Filter
